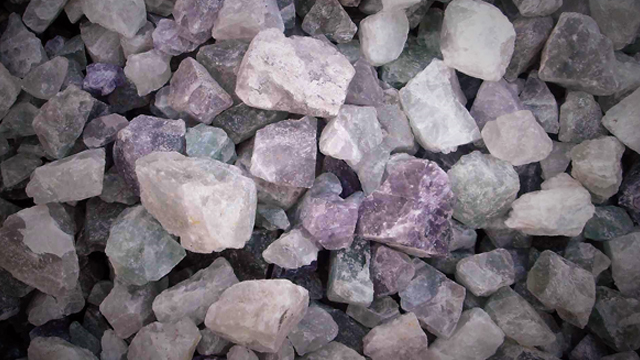

It is used in Steel and Glass Industry.
Its comes in Lumps, Granuels and Powder also.
| Spec | Detail |
|---|---|
| CaF2 : | 90% min |
| Caco3 : | 1% max |
| Sio2 : | 4.5% max |
| P : | 0.5% max |
| S : | 0.5% max |
| Moisture : | 0.5% max |
| Size : | 85% passing thru 100 Mesh |
Application
Owing to its rheological properties and thixotropy of aqueous suspensions.
Bentonite is used as a mud constituent for oil and water well drilling.
Its functions are mainly to stabilise the borehole, seal the borehole walls, and remove drill cuttings.
Bentonite muds are thus employed for oil and water well drilling, tunnel, and microtunnel drilling.
| Grade | moisture | Filter Volume | Viscosity | Yp / Ratio | Wet Residue |
|---|---|---|---|---|---|
| API Sec 11 ( OCMA ) | 12-14 % | < 16 ml | > 30 cps | < 6 | < 2.5 % |
| API Sec 9 ) | 12-14 % | < 15 ml | > 30 cps | 3 | < 4.0 % |
Special Product
| High Yield | 12-14 % | < 20 ml | > 40 cps | < 4.0 % |
Loose Supply : drilling grade lumps will supply in big volumes for bulk shipments
Powder Packing : in 25 kg, 50 kg HDPE and 1000 kg Big Bag
Bentonite is used as a bonding material in the preparation of moulding sand for the production of cast iron, steel, and non-ferrous casting.
The unique properties of bentonite yield green sand moulds with good flowability, compactability, and thermal stability for the production of high quality castings.
Its functions are mainly to stabilise the borehole, seal the borehole walls, and remove drill cuttings.
We offer below Foundry grades :
| Grade | moisture | swelling | GCS | Gel Index | MBA |
|---|---|---|---|---|---|
| Free Swell 35 | 12-14 % | > 35 cc | 8-10 psi | > 95 % | > 400 |
| Free Swell 30 | 12-14 % | > 30 cc | 7-9 psi | > 80 % | > 400 |
| Free Swell 25 | 12-14 % | > 25 cc | 6-8 psi | > 70 % | > 380 |
Loose supply : Foundry grade lumps will supply in big volumes for bulk shipments
Powder Packing : in 25 kg, 50 kg HDPE and 1000 kg Big Bag
Bentonite slurries are used in the construction of special foundations for digging, diaphragm walls and bored piles.
In geothecnical engineering, bentonite is used for self-hardening mixtures employed to build cut off walls, grouting mortars, and grouting.
bentonite waterproofing properties are best exploited in environmental engineering, to seal off soil infiltrations, and line the base of landfills.
We offer below Civil Engineering & piling grades :
| Grade | moisture | Liquid Volume | Marsh Viscosity | Finness | Mud Density |
|---|---|---|---|---|---|
| Bent 45 | 12-14 % | > 600 % | > 45 cps | > 85 % | 1.02 |
| Bent 40 | 12-14 % | > 600 % | > 40 cps | > 85 % | 1.02 |
| Bent 38 | 12-14 % | > 550 % | > 38 cps | > 85 % | 1.02 |
Loose supply : Civil Engineering & piling grade lumps will supply in big volumes for bulk shipments
Powder Packing : in 25 kg, 50 kg HDPE and 1000 kg Big Bag
Due to its water absorption capacity and colloidal property, bentonite is used as a binding additive to convert iron ore fines into pallets.
We offer below IOP Grade Bentonite :
| Grade | moisture | swelling | PWA | MBA |
|---|---|---|---|---|
| IOP 600 | < 14 % | > 30 cc | > 600 | > 400 |
| IOP 550 | < 14 % | > 25 cc | > 550 | > 380 |
Loose supply : IOP grade lumps will supply in big volumes in loose condition
Powder Packing : in 25 kg, 50 kg HDPE and 1000 kg Big Bag
Bentonite is used as an animal feed supplement
Bentonite is used as a pelletizing aid in the production of animal feed pellets.
Due to its high adsorption power, it is particularly effective agains micotoxins.
Owing to its swelling property, bentonite is used for cat litter, due to its advantage of absorbing refuse by forming clumps.
Bentonite is used to improve the efficiency of conversion of pulp into paper, as well as for paper quality improvement by preventing rubber particle agglomeration.
Due to its absorbing property, bentonite also offers useful de-inking properties for paper recycling.
We offer below paper grade :
| Grade | Mesh | Moisture | Swelling | Brook Filed Velocity | Wet Residue |
|---|---|---|---|---|---|
| Paper | 325 | < 14 % | > 30 cc | < 120 | 0.10 % |
Powder Packing : in 25 kg, 50 kg HDPE and 1000 kg Big Bag
