There is two different grade in Activated Bleaching Earth Powder as per below:

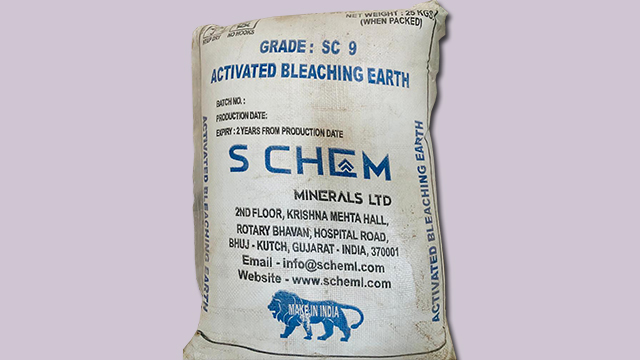

1) SC-9 - Oil To Bleach
- SOYABEAN OIL
- RICEBRAN OIL
- CANOLA OIL
- MUSTARD OIL
- GROUND NUT OIL
- REPESEED OIL
- USED OIL
- BLACK OIL
- TRANSFORMER OIL
- GROUND NUT OIL
- KEROSENE
- OILS WHICH ARE DIFFICULT BLEACH
2) SC-18 - Oil To Bleach
- COTTON SEED OIL
- SUNFLOWER OIL
- SAFFLOWER OIL
- RICEBRAN OIL PRE BLEACH
- BLACK OIL RE-REFINING
- USED OIL RE-REFINING
- KEROSENE BLEACHING
- PALM OIL
Grades
SC-9 is highly acid activated wash clay, used in wide scope of application. SC-9 is highly effective in removing of carotenoids, chlorophyll, oxygenated compounds, soap traces, gums, phospholipids, peroxides, other metal traces.
SC-9 have high surface area as high as 300-320 m2/gm for the physical adsorption in bleaching process. SC-9 easily adsorbs impurities and give crystal clear purity oil.
Chemical Composition
| SiO2 | % | 62-68 |
| AI2O3 | % | 10-15 |
| Fe2O3 | % | 5-8 |
| MgO | % | 2-5 |
| CaO | % | 1-3 |
| Na2 | % | 1-2 |
| TiO2 | % | 0.5-1 |
| LOI | % | 10-13 |
Particle Size Distribution
One of the important parameter for the bleaching clay is particle size distribution. It plays an important role in bleaching process. A Controlled parameter gives better bleaching, fast filtration and lower oil retention.
The Particle size distribution of SC-9 is characterised by sieve analysis of the dry powder. SCHEM INTERNATIONAL set particle size distribution in way to get optimum results.
Average particle size distribution is in the range of 20-30
Values we found for SC-9 are
| D 10 | < 12 |
| D 50 | 22 - 28 |
| D 90 | Min 90 |
Benefits :
SC-9 doesn't harmful to the nutritional value presence in oil.
Particle size distribution set in a way to give fast filtration and low oil retention.
SC-9 is activated by mineral acid such a H2SO4 and then wash out all sulphates, no harmful acid is use to activate it.
SC-9 doesn`t impart any flavour reversion.
SC-9 doen`t give any flavour reversion.
No Free iron content presence in SC-9.
SC-18 is an acid activated wash clay, used in wide scope of application. It is manufactured by the filter less process of bentonite activation.
SC-18 is highly effective in removing of caroenoids, chlorophyll, oxygenated compounds, soap traces, gums, phospholipids, peroxides, other metal traces, foreign matters etc....
SC-18 have surface area 260-280 m2/gm. SC-18 absorbs impurities and give crystal clear purity oil
Chemical Composition
| SiO2 | % | 58-63 |
| AI2O3 | % | 12-17 |
| Fe2O3 | % | 6-10 |
| MgO | % | 2-5 |
| CaO | % | 1-3 |
| Na2 | % | 1-2 |
| TiO2 | % | 1-1.9 |
| LOI | % | 10-15 |
Particle Size Distribution
One of the important parameter for the bleaching clay is particle size distribution. It plays an important role in bleaching process. A controlled parameter gives better bleaching, fast filtration and lower oil retention.
Average particle size distributon is in the range of 20-30
Values we found for SC-18 are
| D 10 | < 15 |
| D 50 | 22 - 28 |
| D 90 | Min 92 |
Benefits
SC-18 doesn't harmful to the nutritional value presence in oil.
Particle size distribution set in a way to give fast filtration and low oil retention.
SC-18 is activated by mineral acid such a H2SO4 and then wash out oil sulphates, no harmful acid is use to activate it.
SC-18 doesn't import any colour reversion.
SC-18 doesn't give any flavour reversion.
No Free iron content Presence in SC-18.
